Tree-protection gratings

Insert frame
Insert frame
Insert frame

Insert frame

Watch

The insert frame is embedded in the concrete foundation and integrates the tree protective grating.



Request

Material

Hot-dip galvanised steel

Properties

- quadratic/round
- divided into several segments

Load capacity

50 kN

Articles

Pro.-No.

Outer dimensions/ diameter (in cm)

Central opening (in cm)

Height (in cm)

Number of segments

Weight (in kg)
square
ER.ST.125.060.Q
125 x 125
60
8
2
42
ER.ST.150.070.Q
150 x 150
70
8
2
50
ER.ST.150.070.LQ
150 x 150
70
8
2
55
ER.ST.180.070.Q
180 x 180
70
8
2
64
ER.ST.200.070.Q
200 x 200
70
10
2
83
ER.ST.200.070.LQ
200 x 200
70
10
2
135
ER.ST.200.125.Q
200 x 200
125
10
2
74
ER.ST.200.125.QI
200 x 200
125
8
4
111
ER.ST.250.070.Q
250 x 250
70
10
2
105
ER.ST.300.080.Q
300 x 300
80
10
2
146
ER.ST.300.150.Q
300 x 300
150
10
2
160
ER.ST.300.150.QI
300 x 300
150
10
4
215

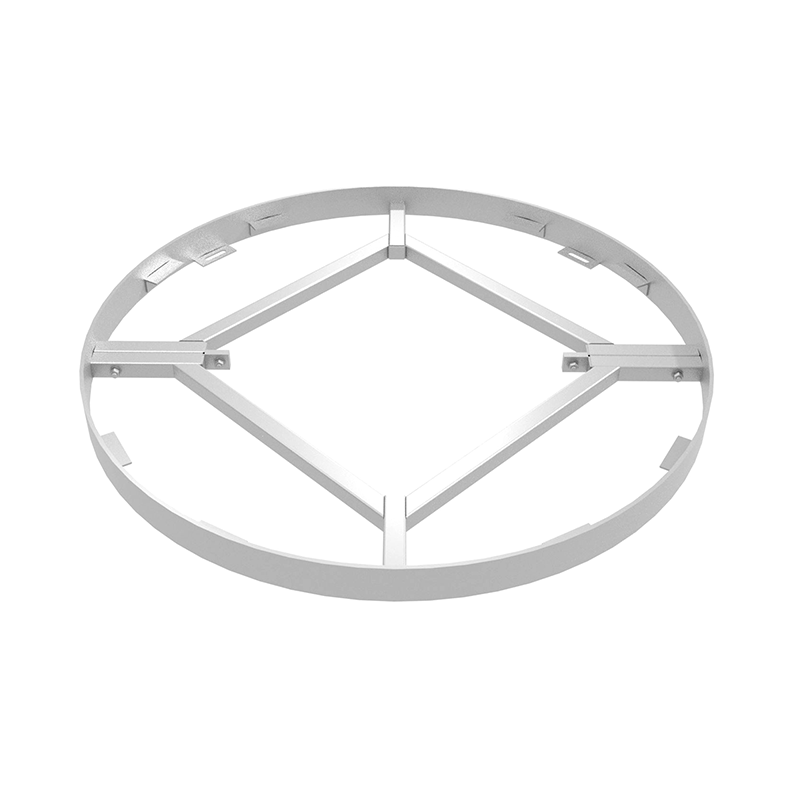

round
ER.ST.125.060.R
125
60
8
2
36
ER.ST.150.070.R
150
70
8
2
43
ER.ST.180.070.R
180
70
8
2
51
ER.ST.200.070.R
200
70
10
2
66
ER.ST.250.070.R
250
70
10
2
83
ER.ST.300.080.R
300
80
10
2
98
ER.ST.300.150.R
300
150
10
2
115
ER.ST.300.150.RI
300
150
10
4
180
