Material | Frame and cover made of steel hot-dip galvanised or stainless steel |

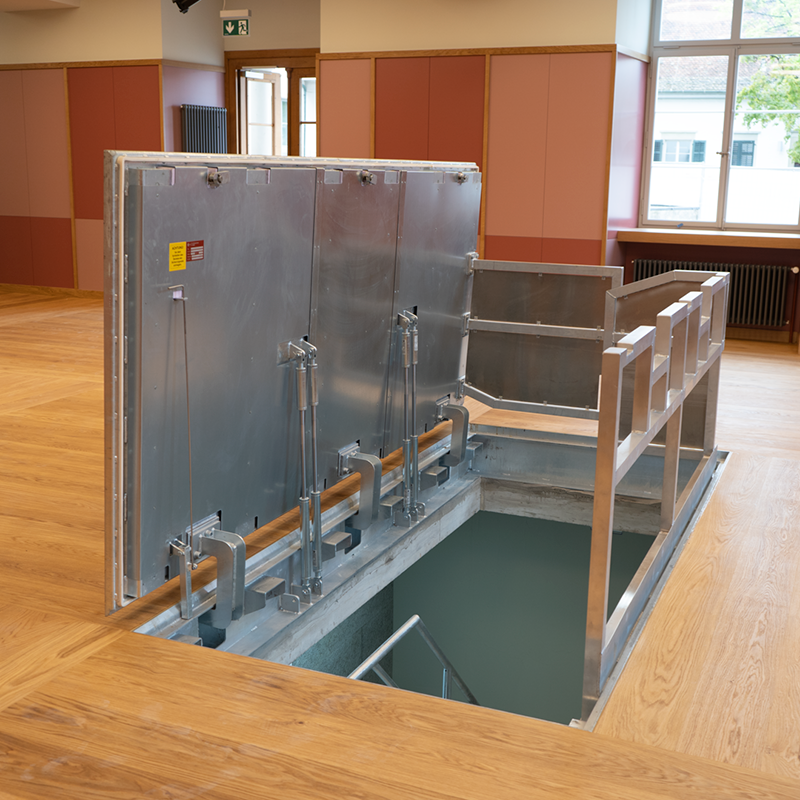

Features | - Gas struts as opening aid
- Surface as tear drop plate cover, concrete broom brushed or as cover to be filled - Surface water proof - Hinge - Automatic closing security |
Optional | - Heat and noise insulation
- Fire protection from below and/or above - Integrated fall protection - Warning flash lights and/or signal horns - Security cap |
Capacity load | A15 until F900 (EN124) |
Product No. |
Clear dimensions of shaft (cm) |
Capacity Load (EN 124) |
Weight unfilled (kg) |
with gas struts |
|||
BT.ST.100.200.A.K6* |
100 x 200 |
A15 |
450 |
BT.ST.100.200.A.TR* |
100 x 200 |
A15 |
450 |
BT.ST.100.200.B.K6* |
100 x 200 |
B125 |
500 |
BT.ST.100.200.B.TR* |
100 x 200 |
B125 |
500 |
BT.ST.100.200.C.K6* |
100 x 200 |
C250 |
600 |
BT.ST.100.200.C.TR* |
100 x 200 |
C250 |
600 |
BT.ST.100.200.D.K6* |
100 x 200 |
D400 |
700 |
BT.ST.100.200.D.TR* |
100 x 200 |
D400 |
700 |
Special sizes possible |
