F System

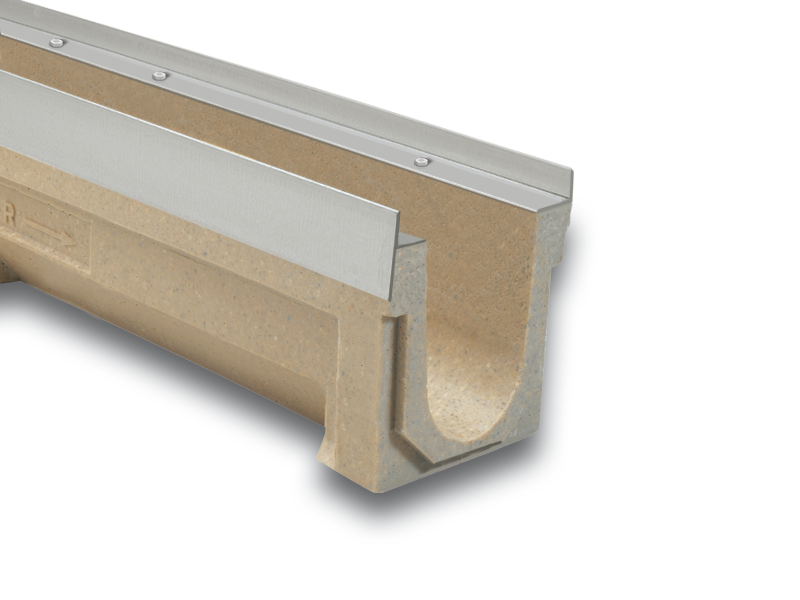

F100K

Watch

The drainage channel F was developed for heavy-duty applications and is installed at petrol stations, industrial halls, motorways and airports - in load classes up to F900. It is the only channel on the market with an own gradient of 2.5%.


Fact sheet

Fact sheet



Material

Polymer concrete

Features

Load class

Up to F900 (SN EN 1433)

Articles

channel

L (mm)

H (mm)

width (mm) Z

width (mm) X

Ø outlet* (mm) Vert.

Ø outlet* (mm) Hor.

hydraulik cross section (cm2)

piece/pallet

F100K00R
1000
190
156
100
110
110
126
52
F100K10R
1000
250
156
100
110
-
184
39
F100K20R
1000
310
156
100
110
110
242
39
